8 by 9 feet wardrobe design

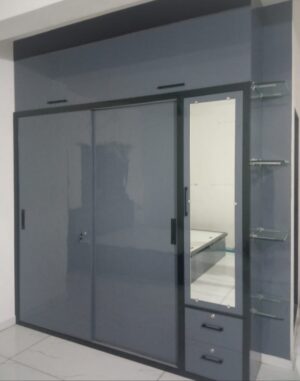

Sliding wardrobe size of 8 by 9 feet wardrobe design are made as per the requirement. First of all, the size of the room in which the sliding wardrobe is made is taken out and the size of the sliding wardrobe is determined accordingly.
The size of a sliding light wardrobe is as follows for example:

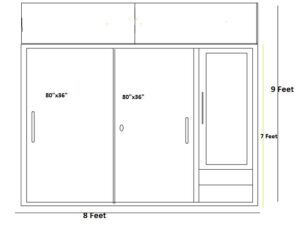

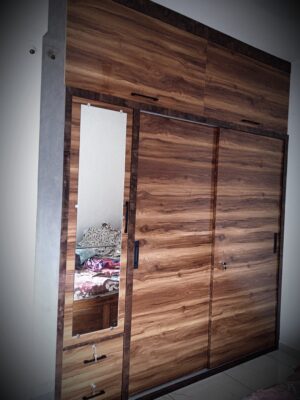

The doors that are installed in a sliding wardrobe of 8 feet width and 9 feet height can be kept up to 80 inches height and 36 inches width and the space that is left is used for mirror. The door of the sliding cupboard is made of 25 mm plywood and the rest of the doors are made of 18 mm plywood.

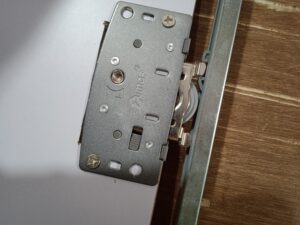

Sliding Door Roller Fitting

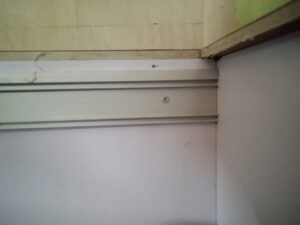

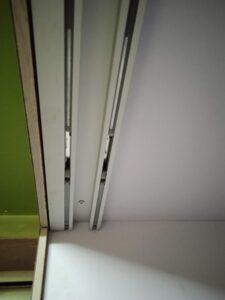

Sliding fittings are installed in the sliding doors and sliding fittings are easily available in the market in 7 feet to 8 feet. The sliding aluminium track at the bottom is installed leaving about 12 mm from the bottom strip while the upper one is installed leaving 6 mm. Either they are moved a little forward or backward and then all around. Border strips of 12mm by 8mm are rotated. The advantage of rotating the border strip is that the upper aluminium treads are not visible. The topmost door is fitted with Plan Hinges, L Hinges or as per requirement. Hydraulic pump is used to open the upper door easily. These pumps are easily available in the market in 10 kg, 15 kg, 20 kg, 25 kg, 35 kg and 50 kg. There are many types of locks available to lock sliding wardrobe . While it is easy to fit a centre lock in a two-door sliding wardrobe. Both doors can be locked with a single lock. Either locks can be fitted in both the doors. For locking both the doors, there is some different fitting apart from the centre lock.
The list of fittings to be fitted in a sliding wardrobe is as follows:
- ply Board 25 mm use for Door.
- Plywood 18 mm Frame and Self .
- Plywood 8 mm Back side .
- 8×4 Limited (Sunmica) in Side .
- 8×4 Limited (Sunmica) Color out Side .
- Sliding Door Fittings Set .
- Handle 4 inch in Side .
- Handle 8 inch Out Side .
- 16 inch drawer channel. use by Kapat .
- Fevicol marine .
- ½″ × 1¼″ Wood Pati .
- ½″ × 1″. Wood Pati .
- Hitex .
- Abro Tape .
- Wall Pvc Plug .5mm
- 2×14 Nail (Nail)
- 1.4×14 Nail (Nail)
- 1×17 Nail (Nail)
- 3/4×19 Nail (Nail)
- 4×13 Screw.
- 6×13 Screw.
- 6×19 Screw.
- 6×25 Screw.
- 8×32 Screw.
- 8×38 Screw.
- 8×50 Screw.
- 8×60 Screw.
- 8×75 Screw.
Top Door Fitting

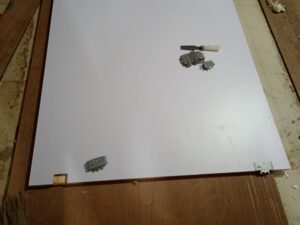

- L Hinges 3×½ × 12 mm .
- L Hinges 3×½ × 18 mm .
- 3×½×¾ Plane Hinges .
- Door hydraulic pump 25kG .
